F Type Lamination

about

Product Description

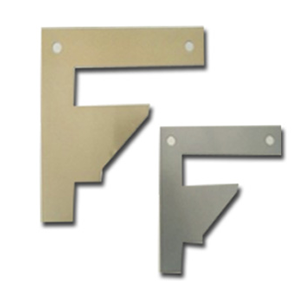

We are a well known organization, engaged in providing premium quality F-Type Electrical Transformer Lamination which are used in transformers, the end use of which is in diverse industries. Our offered product is manufactured with premium quality materials and latest technology in adherence with set industrial norms. After manufacturing process, we test the entire product under various parameters of quality. Apart from that our customers can get this F-Type Electrical Transformer Lamination from us in various sizes and dimensions at affordable rates.

CRGO Three Phase E & I Lamination is widely used for low and high frequency distribution and power transformers, inductors, generators and other electromagnetic applications. With our technical expertise, we produce all types of CRGO Lamination, required by electrical and power electronic industries.

we offer F Type Transformer Lamination, F Type Electrical Transformer Lamination, Electrical Transformer Lamination and CRNGO Transformer Lamination from India.

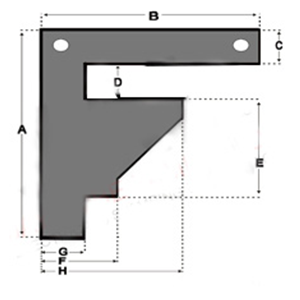

F Lamination (All dimensions in mm) :

TYPE A B C D E F G H HOLE
17 31.8 31.8 6.4 19 12.7 6.25 11.1 20.6 N / A
41 33 33 6.6 19.8 13.2 6.6 11.5 21.45 N / A
12 40 40 8 24 16 8 14 26 N / A
23 47.5 47.5 9.5 28.5 19 9.5 16.65 30.9 N / A
30 50 50 10 30 20 9.9 17.5 32.5 4
31 55.5 55.5 11.1 33.3 22.2 11 19.5 36.1 5.5
15 63.5 63.5 12.7 38.1 25.4 12.65 22.3 41.3 5.5
33 70 70 14 42 28 14 24.5 45.5 5.5
3 80 80 16 48 32 16 28 52 6
16 95.2 95.2 19 57.3 38.2 19 33.4 62 6.5
133 111.3 111.3 22.3 66.7 44.5 22.2 39 72.4 7
43 127 127 25.4 76.1 50.8 25.4 44.5 82.6 7
180 150 150 30 90 60 30 50 100 9.5
8 170.5 158.4 25.4 120.7 50.8 41.1 66.6 105.1 9.5
8B 194 197 38.2 117.6 76.2 41.1 67 126.8 11

Key Features :

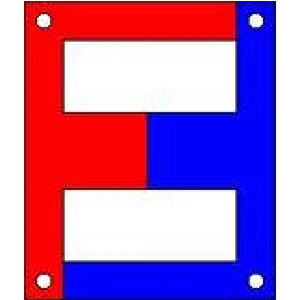

  • Shape and Design: The "F" shape of the lamination is optimized for the core assembly of electrical transformers and motors.

  • Electrical Steel: Made from high-quality silicon steel, which is ideal for reducing core losses in electrical devices.

  • Thin Sheets: Laminations are typically made from thin, precision-stamped sheets, usually in the range of 0.2 to 0.5 mm thickness.

  • Insulated Coating: Laminations are coated with a layer of insulation to prevent eddy current formation, thereby improving energy efficiency.
